RDF400角雷達反射器
本企業制造的RDF400角雷達反射器是配備于救生艇、救生筏、為增強小雷達目標回波的全向無源裝置。它由每個導電平面互相垂直交叉而構成,平行于入射方向反射入射波的較大部分。其性能符號國際標準化組織ISO8729:1997(E)的技術要求及國際海事組織IMO決議A-384(X)決議的規定。

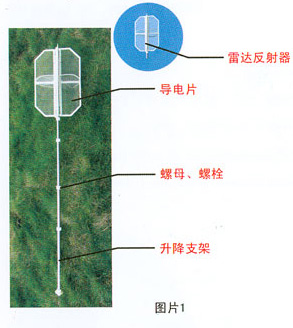

一、結構:(見圖)Structure:(See picture 1)

|
二、主要技術指標:Main technical index (一)、反射面積≥40㎡(見圖片2) (1)Reflection area≥40㎡(See picture 2)
(二)、總質量≤1.6Kg (2)Total weight≤1.6Kg

|
安裝方法 Installation method:

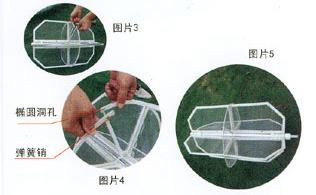

一、將反射器從包裝袋中取出,將導電片圍繞不銹鋼轉動軸展開向下、上8個直角三角形,而后將導簧銷對準橢圓潤孔插入再旋轉90°鎖住。(見圖3、4、5).
Take reflection equippment out o packing bag.make the conducting flake surround the stainless steel rctating axis and outspread as 8 right-angle triangle up and down,then insert the spring pin into the ellpse hole and then screw by 90 °to lock(See picture 3、4&5)

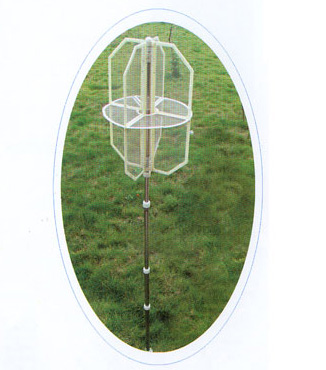

二、將不銹鋼轉動軸中心內的一根不銹鋼支桿拔出約20公分然后將塑料固定螺栓螺母旋緊。(見圖6)
(2)Pull out a stainless beanpcle in the center of the stainless steel rotating axis by 20cm.then screwlight lastic bolt&nut(See picture 6)

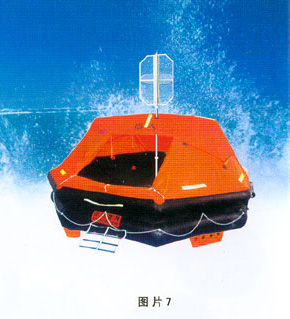

三、將連接在反射器上的20公分支桿從救生艇筏頂蓬洞孔中插入閥體內,然后在筏體內再將其插入不銹鋼升降支架中,最后將升降支架上的全部塑料螺栓旋緊與筏低固定好即可。(見圖7)
(3)Inset the 20cm long beanpole connected to refletion equippment to the hole on top sail of the raft,then insert it to the stainless steel up-and-down bracket in the body of the raft,at last screw tight all the plastic bolt & nut. make sure they firmly fixed to the bottom of the raft.(See picture 7)

四、建議安裝高度:水平面2m
Propositonal installation height:2m from level
五、注意事項:Notice
(1)安裝方法:避免陰影區。Installation Method:To avoid the shadoe area.
(2)羅盤的安全距離:2m。 Sfety Distance of Compass:2m.
